Description
Price
Quantity

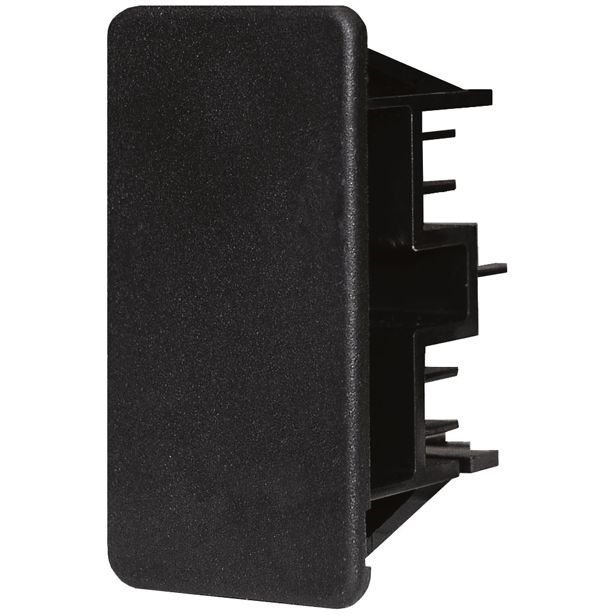

Plug for Contura mounting panel.
Item#:
BLS8278
Manufacturer:
Marinco, Ancor, Guest, BlueSea
4.7900
3.84
EACH
Call to Order

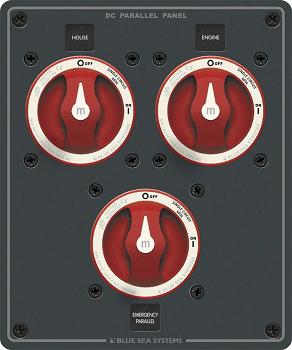

PANEL DC PARALLEL 3 SWITCHES
AC Digital Frequency Meter
Dual battery bank Traditional Metal panel.
Isolates start circuit from house circuit, protects electronics from sags and spikes caused by engine cranking.
Discharges batteries independently.
Single circuit ON/OFF battery switch controls house circuit.
Single circuit ON/OFF battery switch controls engine Start circuit.
Single circuit ON/OFF battery switch combines house and start battery banks for emergency starting (Emergency Cross Connect/Parallel).
Ignition protected-safe for installation aboard gasoline-powered boats.
Maximum voltage rating: 48VDC.
Switch amperage ratings continuous: 300A.
Intermittent (5 min.): 500A.
Cranking (100 sec.): 700A.
Panel finish: graphite color.
Includes #4218 square format label set.
Dimensions: 6.25" wide x 7.50" high x 2.25" deep.
Item#:
BLS8280
Manufacturer:
Marinco, Ancor, Guest, BlueSea
374.3200
299.45
EACH
Call to Order

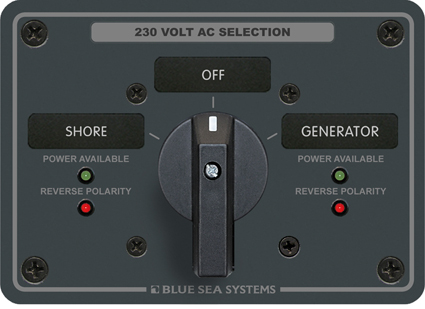

ROTARY SWITCH PANEL 230V AC/65
AC rotary switch panel
AC Traditional Metal rotary 2 pole switch panel.
Switches 2 - 230V AC sources.
Includes #9011 heavy duty industrial rated switch.
Two-part polyurethane slate gray finish.
Heavy 1/8" aluminum 5052 alloy.
Red reverse polarity LED indicators.
Green power available LED indicators.
Compact solution when circuit protection is provided elsewhere.
Nominal voltage: 230V AC.
Maximum amperage: 65A.
Includes #9583 rotary panel labels.
Dimensions: 5.25" wide x 3.75" high x 2.41" deep.
Switches 2 - 230V AC sources.
Includes #9011 heavy duty industrial rated switch.
Two-part polyurethane slate gray finish.
Heavy 1/8" aluminum 5052 alloy.
Red reverse polarity LED indicators.
Green power available LED indicators.
Compact solution when circuit protection is provided elsewhere.
Nominal voltage: 230V AC.
Maximum amperage: 65A.
Includes #9583 rotary panel labels.
Dimensions: 5.25" wide x 3.75" high x 2.41" deep.
Item#:
BLS8357
Manufacturer:
Marinco, Ancor, Guest, BlueSea
614.2000
491.36
EACH
Call to Order

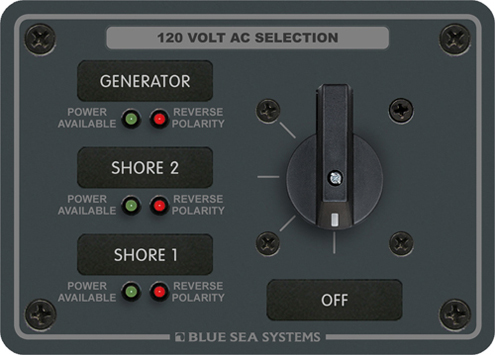

ROTARY SWITCH PANEL 120VAC 30A
AC rotary switch panel
AC Traditional Metal rotary 30A 2 pole switch panel.
Switches 3 - 120VAC sources.
Allows connecting one of two or three different AC sources to one circuit.
Includes #9010 heavy duty industrial rated switch.
Two-part polyurethane slate gray finish.
Heavy 1/8" aluminum 5052 alloy.
Red reverse polarity LED indicators.
Green power available LED indicators.
Compact solution when circuit protection is provided elsewhere.
Red reverse polarity LED indicators.
Green power-available LED indicators.
Nominal voltage: 120V AC.
Maximum amperage: 30A.
Includes #9583 rotary labels.
Dimensions: 5.25" wide x 3.75" high x 2.41" deep.
Item#:
BLS8366
Manufacturer:
Marinco, Ancor, Guest, BlueSea
415.3800
332.30
EACH
Call to Order

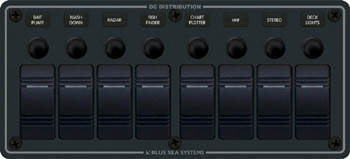

PANEL 8 POS CB 12VDC H BK H20
8 Pos Circuit Breaker Panel
8 position Contura switch with push button circuit breaker panel.
Designed for open cockpit and flybridge applications.
Will withstand the water exposures normally encountered in above deck applications:
salt spray, rain, hose washdowns, & momentary immersions.
Black panel front is IP66 when mounted with gasket in place.
Meets UL 1500 and ISO 8846 external ignition protection requirements.
8 - #8230 Contura SPST switches, designed for 12 or 24V DC systems.
ON indicating LEDs embedded in all switches.
Switch rating: 20A @ 12V DC; 15A @ 24V DC.
8 - push button reset-only 15A circuit breakers with waterproof boots.
Amperage operating current: 18 Milliamps each.
Panel cumulative rating: 90A.
Includes #8217 small format label set.
Dimensions: 9.37" wide x 4.25" high x 3.25" deep.
Item#:
BLS8371
Manufacturer:
Marinco, Ancor, Guest, BlueSea
375.8200
300.66
EACH

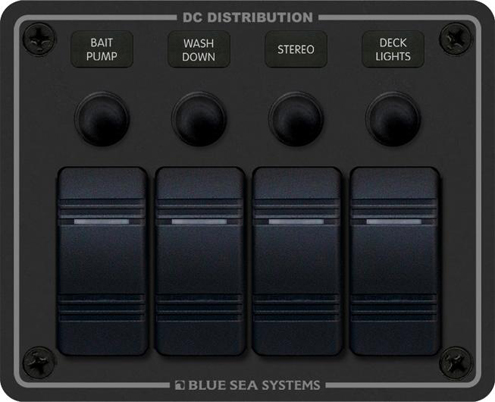

PANEL 12V 4POS SWITCH & BREAKR
Weather-resistant switch panel
4 position Contura switch w/ push button circuit breaker panel
Panel designed for open-cockpit and flybridge applications.
Will withstand the water exposures normally encountered in above deck applications:
salt spray, rain, hose washdowns, & momentary immersions.
Black panel front is IP66 when mounted with gasket in place.
Meets UL 1500 and ISO 8846 external ignition protection requirements.
4 - #8230 Contura SPST switches, designed for 12 or 24V DC systems.
ON indicating LEDs embedded in all switches.
Switch rating: 20A @ 12V DC; 15A @ 24V DC.
4 - push button reset-only 15A circuit breakers with waterproof boots.
Amperage operating current: 18 Milliamps each.
Panel cumulative rating: 45A.
Includes #8217 small format label set.
Dimensions: 5.25" wide x 4.25" high x 3.25" deep.
Item#:
BLS8372
Manufacturer:
Marinco, Ancor, Guest, BlueSea
219.7800
175.82
EACH

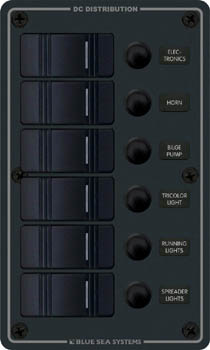

PANEL H2O CB 12VDC 6 POS V BLK
Circuit Breaker
Black Water Resistant Circuit Breaker Panel Flybridge and open cockpit applications Ignition protected, safely install on gas powered boats. 6 positions - 6 installed contura switches. Push button circuit breaker with waterproof boot. Heavy 1/8" aluminum - 2-part polyurethane white finish. "On" LEDs in switch. Wired/ready to install - countersunk mount holes. Includes set of 60 common DC labels. Meets UL1500 and ISO 8846 ignition protection requirements. 4-1/2" W x 7-1/2" H Vertical mount. Weight: 1.2 lb
Item#:
BLS8373
Manufacturer:
Marinco, Ancor, Guest, BlueSea
291.7100
233.37
EACH

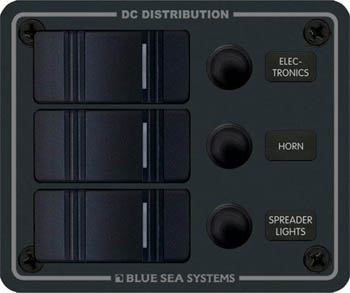

PANEL H2O CB 12VDC 3 POS V BLK
Circuit Breaker Panel
Flybridge & open cockpit application - water resistant Safe for installation aboard gasoline powered boats ON-OFF Contura Switches ON indicating LEDs embedded in switch Watertight mounting gasket Push Button Reset-Only circuit breakers with waterproof On LEDs in switch. Installed switch is on-off, boots Dimension:4-1/2" W x 3-3/4" H Vertical mount Weight: 4.5 lbs
Item#:
BLS8374
Manufacturer:
Marinco, Ancor, Guest, BlueSea
182.1800
145.74
EACH
PANEL 12/24V 13 POS
13 Pos Circuit Breaker Panel
13 position Traditional Metal DC branch circuit breaker panel.
10 - 15A #7210 circuit breakers.
Distribute current from a high amperage input into lower amperage circuits.
All positive, negative and grounding buses installed, fully pre-wired.
Amber ON-indicating LEDs.
Backlit label positions.
Includes #8030 label set.
Nominal voltage: 12/24V DC.
Maximum amperage: 100A per bus.
Dimensions: 11.25" high x 5.25" wide x 2.5" deep.
Item#:
BLS8376
Manufacturer:
Marinco, Ancor, Guest, BlueSea
688.0200
550.41
EACH
Call to Order

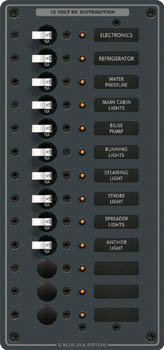

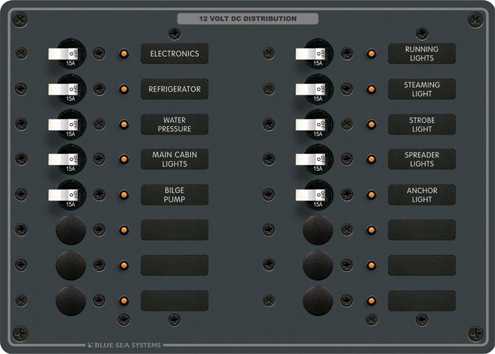

PANEL DC 16POS 10-15A BREAKERS
16 position circuit breaker
16 position Traditional Metal DC branch circuit breaker panel.
10 - 15A #7210 circuit breakers.
Distribute current from a high amperage input into lower amperage circuits.
All positive, negative and grounding buses installed, fully pre-wired.
Amber ON-indicating LEDs.
Backlit label positions.
Includes #8030 label set.
Nominal voltage: 12/24V DC.
Maximum amperage: 100A per bus.
Dimensions: 7.5" high x 10.5" wide x 2.5" deep.
Item#:
BLS8377
Manufacturer:
Marinco, Ancor, Guest, BlueSea
808.7000
646.96
EACH
Call to Order

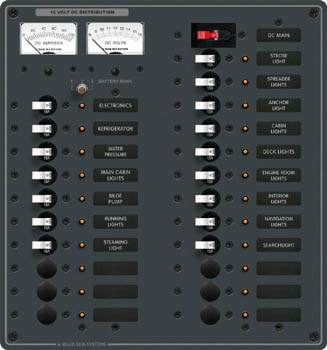

PANEL DC 23 POS W/MAIN
DC Main + 22 Positions
Main & 22 position Traditional Metal DC branch circuit breaker panel.
1 - 100A #7250I main circuit breaker.
16 - 15A #7210 circuit breakers.
Distribute current from a high amperage input into lower amperage circuits.
All positive, negative and grounding buses installed, fully pre-wired.
8-16V DC #8028 voltage meter.
0-100A DC analog micro ammeter.
Toggle switch to monitor voltage on up to three battery banks.
Amber ON-indicating LEDs.
Backlit label positions.
Includes #8030 label set.
Nominal voltage: 12V DC.
Maximum amperage: 100A.
Dimensions: 11.25" high x 10.5" wide x 3.0" deep.
Item#:
BLS8380
Manufacturer:
Marinco, Ancor, Guest, BlueSea
1448.8000
1159.04
EACH

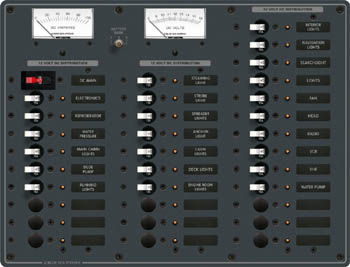

PANEL DC 33 POS W/MAIN V/A MTR
DC Main + 32 Positions
Main & 32 position Traditional Metal DC branch circuit breaker panel.
1 - 100A #7250I main circuit breaker.
23 - 15A #7210 circuit breakers.
Distribute current from a high amperage input into lower amperage circuits.
All positive, negative and grounding buses installed, fully pre-wired.
8-16V DC #8003 voltage meter.
0-100A DC #8017 ammeter.
Toggle switch to monitor voltage on up to three battery banks.
Amber ON-indicating LEDs.
Backlit label positions.
Includes #8030 label set.
Nominal voltage: 12V DC.
Maximum amperage: 100A.
Dimensions: 11.25" high x 14.75" wide x 3.0" deep.
Item#:
BLS8381
Manufacturer:
Marinco, Ancor, Guest, BlueSea
1953.5800
1562.87
EACH

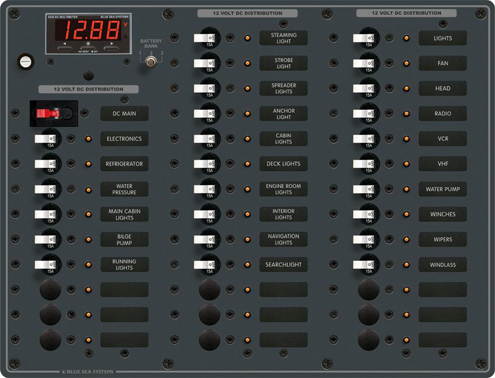

PANEL DC 36 POS W/ MAIN
Circuit breaker panel
Main & 35 position Traditional Metal DC branch circuit breaker panel.
1 - 100A #7250I main circuit breaker.
26 - 15A #7210 circuit breakers.
Distribute current from a high amperage input into lower amperagecircuits.
All positive, negative and grounding buses installed, fully pre-wired.
Includes #8248 digital multi-function meter with alarm.
Toggle switch to monitor voltage on up to three battery banks.
Amber ON-indicating LEDs.
Backlit label positions.
Includes #8030 label set.
Nominal voltage: 12/24V DC.
Maximum amperage: 100A.
Dimensions: 11.25" high x 14.75" wide x 4.0" deep.
Item#:
BLS8382
Manufacturer:
Marinco, Ancor, Guest, BlueSea
2405.6800
1924.55
EACH
Call to Order

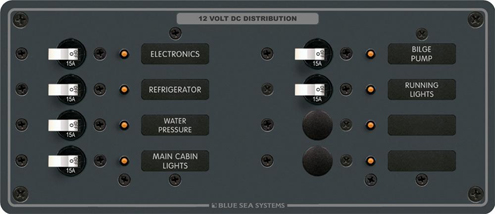

PANEL DC 8 POS HORZ
Circuit breaker panel
8 position Traditional Metal DC branch circuit breaker panel.
6 - 15A #7210 circuit breakers.
Distribute current from a high amperage input into lower amperage circuits.
All positive, negative and grounding buses installed, fully pre-wired.
Amber ON-indicating LEDs.
Backlit label positions.
Includes #8030 label set.
Nominal voltage: 12/24V DC.
Maximum amperage: 100A per bus.
Dimensions: 4.5" high x 10.5" wide x 2.5" deep.
Item#:
BLS8385
Manufacturer:
Marinco, Ancor, Guest, BlueSea
394.2700
315.42
EACH

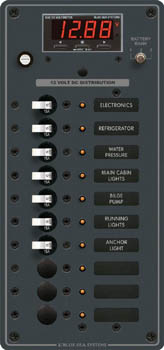

PANEL DIGITAL METER 10P 12/24V
DC 10 Position Breaker Panel
10 position Traditional Metal DC branch circuit breaker panel.
7 - 15A #7210 circuit breakers.
Includes #8248 digital multi-function meter with alarm.
Backlit label positions.
Toggle switch to monitor voltage on up to three battery banks.
All positive, negative and grounding buses installed, fully pre-wired.
Voltage: 12/24V DC.
Maximum amperage: 100A.
Includes #8030 label set.
Amber ON-indicating LEDs.
Dimensions: 11.25" high x 5.25" wide x 4.0" deep.
Item#:
BLS8402
Manufacturer:
Marinco, Ancor, Guest, BlueSea
951.9400
761.55
EACH
Call to Order

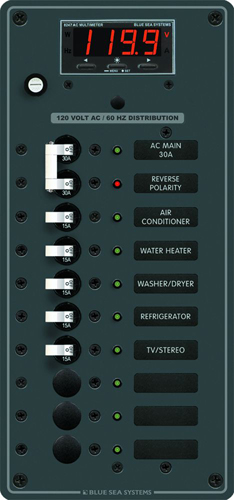

PANEL 120V AC 8 POS W/ MAIN
AC Main + 8 Positions
Main plus 8 position Traditional Metal panel.
30A #7238 main circuit breaker.
5 - 15A #7210 branch circuit breakers.
Includes #8247 digital multi-function meter with alarm.
Nominal voltage: 120V AC.
Red reverse polarity indication LED.
Green ON indicating LEDs.
Backlit label positions.
All hot, neutral and safety ground buses installed, fully pre-wired.
Includes #8031 label set.
Dimensions: 11.25" high x 5.25" wide x 4.0" deep.
Item#:
BLS8406
Manufacturer:
Marinco, Ancor, Guest, BlueSea
969.8100
775.85
EACH
Call to Order

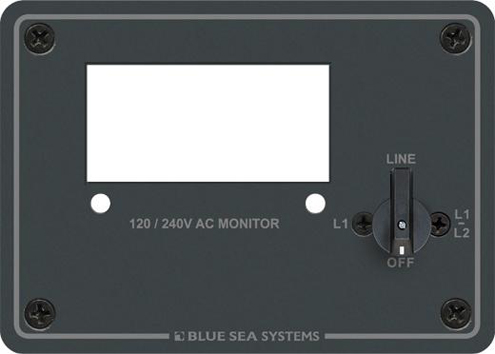

PANEL SINGLE METER 240V AC
Digital AC meter mounting panel
Digital AC meter mounting panel.
Perfect solution for monitoring 120/240V AC systems.
Monitor line 1 or line 2 to neutral and line 1 to line 2 voltages.
Monitor 120V and 240V currents.
Intended for use with #8247 AC digital multimeter (not included).
Includes two additional #8256 current transformers.
Panel material: heavy 1/8" aluminum 5052 alloy.
Dimensions: 5.25" wide x 3.75" high.
Item#:
BLS8410
Manufacturer:
Marinco, Ancor, Guest, BlueSea
275.4000
220.32
EACH
Call to Order

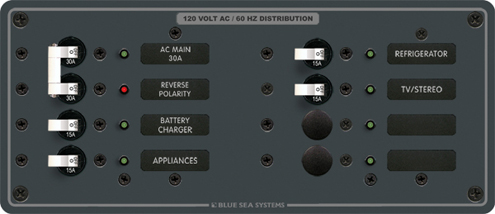

PANEL 120V 6 POSITION W/ MAIN
AC main circuit breaker
Main plus 6 position Traditional Metal panel.
30A #7238 main circuit breaker.
4 - 15A #7210 branch circuit breakers.
Nominal voltage: 120V AC.
Red reverse polarity indication LED, green ON indicating LEDs.
Backlit label positions, includes #8031 label set.
All hot, neutral and safety ground buses installed, fully pre-wired.
Dimensions: 4.50" high x 10.5" wide x 2.5" deep.
Item#:
BLS8412
Manufacturer:
Marinco, Ancor, Guest, BlueSea
390.7100
312.57
EACH
Call to Order

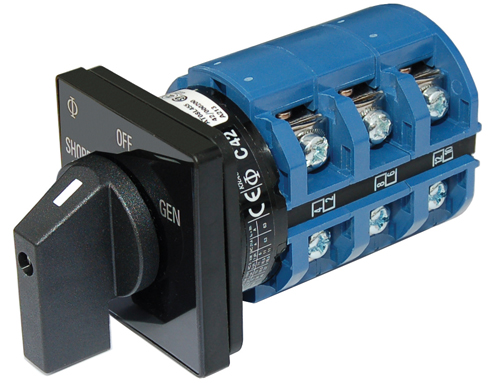

ROTARY SWITCH 240V 2POS 3 POLE
AC rotary switch
65 amp 2 positions + OFF, 3 pole AC rotary switch.
Allows connecting one of two different AC sources to one circuit.
Switches 2-120/240V AC sources.
Switches both lines (hots) and neutral.
Compact solution when circuit protection is provided elsewhere.
Maximum voltage: 600V AC.
Nominal voltage: 240V AC, maximum amperage: 65A
Mounts in panels up to 0.16" thick
Dimension: 2.52" wide x 2.52" high x 3.65 depth.
Item#:
BLS9019
Manufacturer:
Marinco, Ancor, Guest, BlueSea
648.8900
519.11
EACH
Call to Order

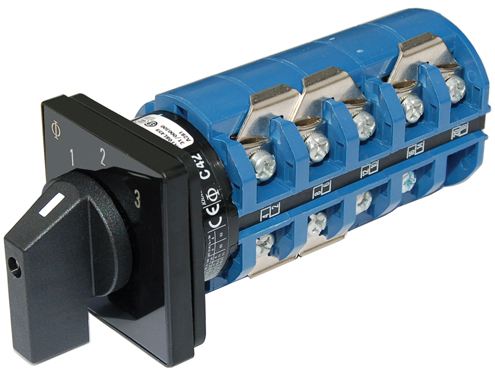

ROTARY SWITCH 240V 3POS 3 POLE
AC rotary switch
65 amp 3 positions + OFF, 3 pole AC rotary switch.
Allows connecting one of three different AC sources to one circuit.
Switches 3-120/240V AC sources.
Switches both lines (hots) and neutral.
Compact solution when circuit protection is provided elsewhere.
Maximum voltage: 600V AC.
Nominal voltage: 240V AC, maximum amperage: 65A.
Mounts in panels up to 0.16" (4.00mm) thick
Dimension: 2.52" wide x 2.52" high x 5.50 depth.
Item#:
BLS9077
Manufacturer:
Marinco, Ancor, Guest, BlueSea
819.3100
655.45
EACH
Call to Order
SWITCH PANEL 6 WAY
Compact switch panel
Splash proof 6 position switch panel.
Six ON-OFF toggle switches, protected by neoprene rubber boots.
Inline fuse holders with fuses behind panel.
12V / 20A maximum load.
Includes gasket, screws, and label set.
High impact plastic.
Dimensions: 6" X 9" X 4".
Item#:
HELH73070041
Manufacturer:
Hella
79.3100
67.41
EACH
Call to Order

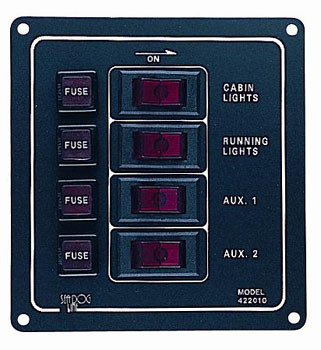

PANEL SWITCH ALUM VERT FOUR DP
Aluminum Vertical Switch Panel
4 circuit switch panel.
Features four 15A 12V DC illuminated SPST ON/OFF rocker switches and four 10A 12 V DC fuse holders.
Individual circuit 10A maximum, 37A total per panel.
Includes a sheet of 20 preprinted decals.
Constructed of stamped anodized aluminum.
12 V DC.
Dimensions: 4-1/2" wide x 4-7/8" high.
Item#:
SDG422010-1
Manufacturer:
Sea-Dog Corp
49.2300
34.95
EACH
PANEL SWITCH ALUM VERT SIX DP
Aluminum Vertical Switch Panel
6 circuit switch panel.
Features six 15A 12 VDC illuminated SPST ON/OFF rocker switches and six 10A 12 VDC fuse holders.
Individual circuit 10A maximum, 37A total per panel.
Includes a sheet of 20 preprinted decals.
Constructed of stamped anodized aluminum.
12V DC.
Dimensions: 4-1/2" wide x 6-1/2" high.
Item#:
SDG422110-1
Manufacturer:
Sea-Dog Corp
64.1100
45.52
EACH

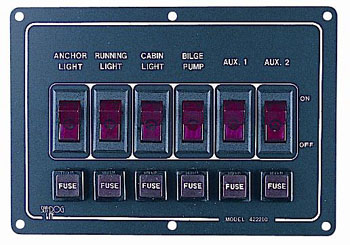

PANEL SWITCH ALUM HORIZ DP
Aluminum Horizontal Switch
6 circuit switch panel.
Features six 15A 12V DC illuminated SPST ON/OFF rocker switches and six 10A 12V DC fuse holders.
Individual circuit 10A maximum, 37A total per panel.
Includes a sheet of 20 preprinted decals.
Constructed of stamped anodized aluminum.
12V DC.
Dimensions: 6-1/2" wide x 4-1/2" high.
Item#:
SDG422210-1
Manufacturer:
Sea-Dog Corp
65.0300
46.17
EACH

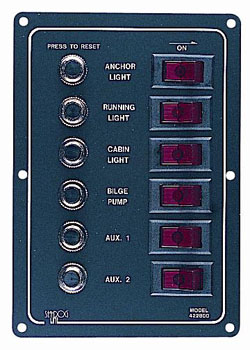

BREAKER PANEL 6 CIRCUIT DP
Aluminum Breaker Panel
Aluminum breaker panel features six 15A 12V DC illuminated SPST ON/OFF rocker switches and six thermal AC/DC circuit breakers (two 3A, two 6A, one 8A, and one 10A).
Individual circuit 10A maximum, 40A total per panel.
Includes a sheet of 20 preprinted decals.
Constructed of stamped anodized aluminum.
12V DC.
Dimensions: 4-1/2" wide x 6-1/2" high.
Item#:
SDG422800-1
Manufacturer:
Sea-Dog Corp
76.1900
54.09
EACH

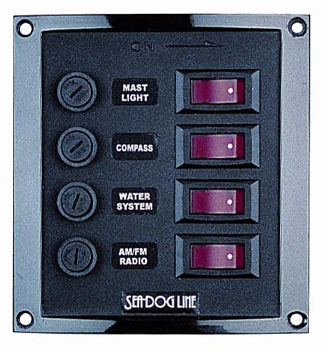

SWITCH PANEL 4 GANG VERT DP
Vertical 4-Gang Panel
Fire resistant 4 circuit switch panel.
Features four 15A 12 VDC illuminated SPST ON/OFF rocker switches and four fuse holders for use with standard AGC 1/4" x 1-1/4" glass style fuses.
Individual circuit 10A maximum, 37A total per panel.
Fire resistant panel is suitable for use in engine room compartments.
Includes a sheet of 20 preprinted decals.
Constructed of injection molded nylon.
12V DC.
CE compliant.
Dimensions: 4-1/2" wide x 4-13/16" high.
Item#:
SDG424010-1
Manufacturer:
Sea-Dog Corp
40.8700
29.02
EACH

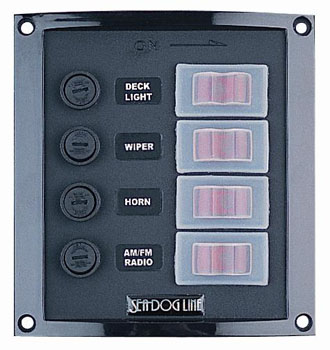

SWITCH PANEL 4 GANG VERT DP
Splash Guard Vertical Panel
Splash guard 4 circuit fire resistant switch panel.
Features four 15A 12V DC illuminated SPST ON/OFF rocker switches and four fuse holders for use with standard AGC 1/4" x 1-1/4" glass style fuses.
Individual circuit 10A maximum, 37A total per panel.
The splash guard switch covers make this panel ideal for use where the front might be subject to light spray or water. (NOT designed for total immersion).
Suitable for use in engine room compartments.
Includes a mounting gasket and a sheet of 20 preprinted decals.
Constructed of injection molded nylon.
CE compliant.
12V DC.
Dimensions: 4-1/2" wide x 4-13/16" high.
Item#:
SDG424016-1
Manufacturer:
Sea-Dog Corp
55.7500
39.59
EACH
Call to Order

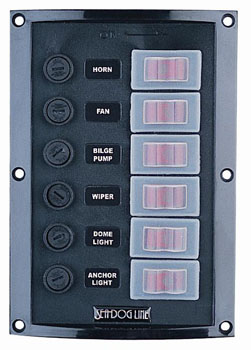

SWITCH PANEL 6 GANG VERT DP
Splash Guard 6-Gang Panel
Splash guard 6 circuit fire resistant switch panel.
Features six 15A 12V DC illuminated SPST ON/OFF rocker switches and six fuse holders for use with standard AGC 1/4" x 1-1/4" glass style fuses.
Individual circuit 10A maximum, 37A total per panel.
The splash guard switch covers make this panel ideal for use where the front might be subject to light spray or water. (NOT designed for total immersion).
Suitable for use in engine room compartments.
Includes a mounting gasket and a sheet of 20 preprinted decals.
Constructed of injection molded nylon.
12V DC, CE compliant.
Dimensions: 4-1/2" wide x 6-1/2" high.
Item#:
SDG424116-1
Manufacturer:
Sea-Dog Corp
74.3300
52.77
EACH
Call to Order

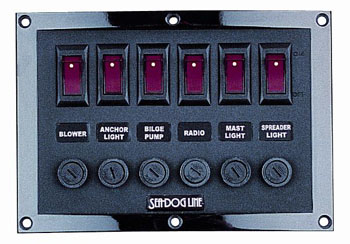

SWITCH PANEL 6 GANG HORIZ DP
Horizontal 6-Gang Panel
Fire resistant 6 circuit switch panel.
Features six 15A 12V DC illuminated SPST ON/OFF rocker switches and six fuse holders for use with standard AGC 1/4" x 1-1/4" glass style fuses.
Individual circuit 10A maximum, 37A total per panel.
Suitable for use in engine room compartments.
Includes a sheet of 20 preprinted decals.
Constructed of injection molded nylon.
Installs with six #6 RH fasteners (not included).
CE compliant.
12V DC.
Dimensions: 6-7/16" wide x 4-1/2" high.
Item#:
SDG424210-1
Manufacturer:
Sea-Dog Corp
62.2500
44.20
EACH
Call to Order

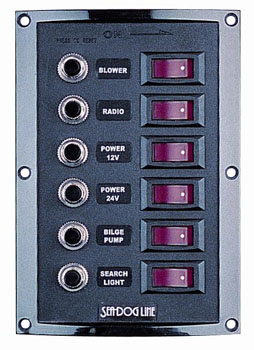

BREAKER PANEL 6 GANG VERT DP
Vertical 6-Gang Breaker Panel
Fire resistant 6 circuit breaker panel.
Features six 15A 12V DC illuminated SPSTON/OFF rocker switches and six thermal AC/DC circuit breakers (two 3A, two 6A, one 8A, and one 10A).
Individual circuit 10A maximum, 37A total per panel.
Fire resistant panel is suitable for use in engine room compartments.
Includes a sheet of 20 preprinted decals.
Constructed of injection molded nylon.
12V DC.
CE compliant.
Dimensions: 4-1/2" wide x 6-1/2" high.
Item#:
SDG424800-1
Manufacturer:
Sea-Dog Corp
75.5600
53.65
EACH

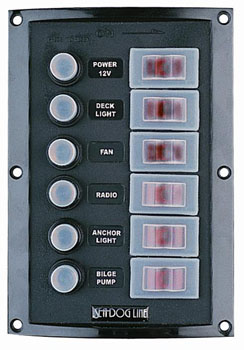

BREAKER PANEL 6 GANG VERT DP
Splash Guard Vertical Panel
Splash guard 6-gang breaker rocker switch panel.
Features six 15A 12V DC illuminating SPST ON/OFF rocker switches and six thermal AC/DC circuit breakers (two 3A, two 6A, one 8A, and one 10A).
Individual circuit 10A maximum, 37A total per panel.
The splash guard switch covers make this panel ideal for use where the front might be subject to light spray or water. (NOT designed for total immersion).
Suitable for use in engine room compartments.
Includes mounting gasket and a sheet of 20 preprinted decals.
Constructed of injection molded nylon.
12V DC.
Dimensions: 4-1/2" wide x 6-1/2" high.
Item#:
SDG424806-1
Manufacturer:
Sea-Dog Corp
101.6000
72.14
EACH
Call to Order

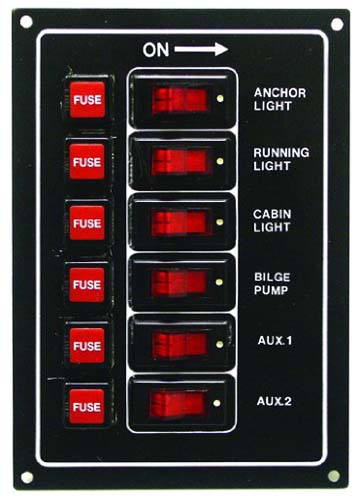

SWITCH PANEL 6 ROCKER & FUSES
6 gang switch panel
6 gang switch panel. Replaces in-line fuses and unswitched circuits. Comes complete with: - Illuminated rocker switches - Pop out fuse holders - Marine-grade tinned wire. 12 volt, 35 amps total. Aluminum panel construction. Weight: .7 lb.
Item#:
SSN50031275
Manufacturer:
SeaSense
56.8700
48.34
EACH

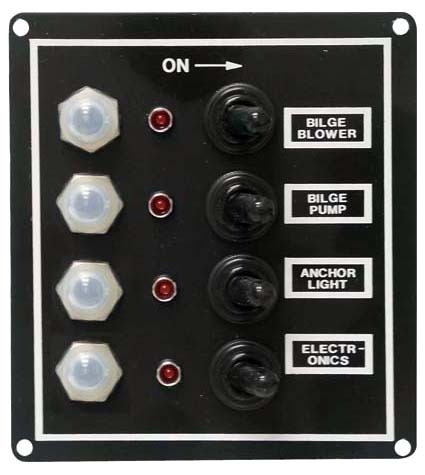

SWITCH PANEL 4 TOGGLE & BREAKR
4 gang panel
4 gang panel. Waterproof panel features: - Push-button breaker resets - LED indicator lights - Marine-grade hardware. Rated for 12 volts, 40 amps total. Aluminum construction. Weight: .6 lb.
Item#:
SSN50031284
Manufacturer:
SeaSense
71.6700
60.99
EACH

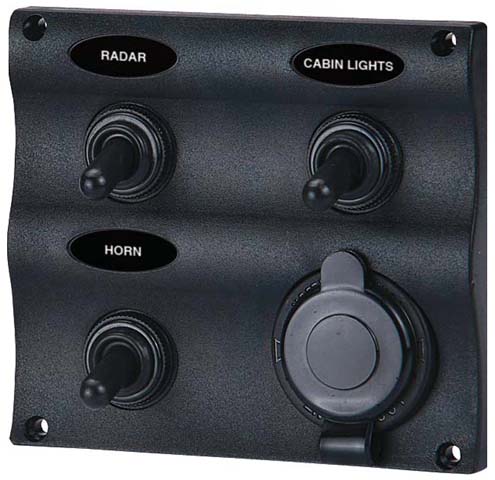

PANEL 3 TOGGLE & POWER SOCKET
3 gang panel with DC socket
3 gang panel with DC power socket. Brand new "Wave" appearance. Constructed from high-impact UV stabilized plastic. Reinforced corners prevent cracking from stress. Full 20 amp switches with 15 amp fuses for safety. Each fuse holder contains two fuses. Weight: .5 lb.
Item#:
SSN50031290
Manufacturer:
SeaSense
63.9200
54.33
EACH

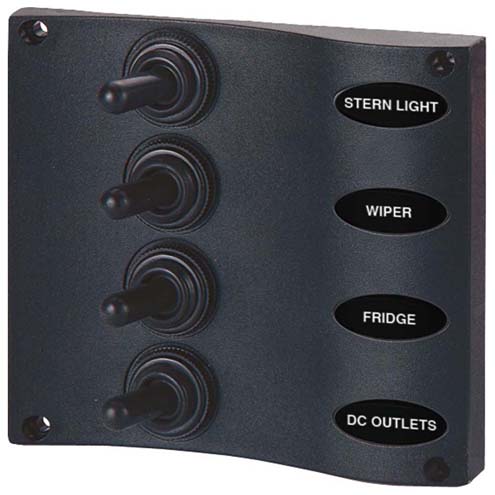

SWITCH PANEL 4 TOGGLE DSCS
4 gang panel
4 gang panel. Brand new "Wave" series appearance. Built from high-impact UV-stabilized plastic. Reinforced corners prevent cracking. Full 20 amp switches with 15 amp fuses for safety. Each fuse holder has two fuses. Weight: .6 lb.
Item#:
SSN50031291
Manufacturer:
SeaSense
65.7500
55.88
EACH

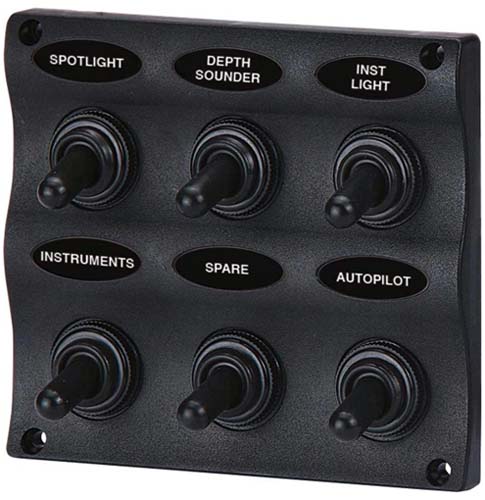

SWITCH PANEL 6 TOGGLE
6 gang panel
6 gang panel. Brand new "Wave" design. Constructed from high-impact UV-stabilized plastic. Reinforced to prevent cracking. Each fuse holder contains 2 fuses for safety. Weight: .5 lb.
Item#:
SSN50031297
Manufacturer:
SeaSense
88.7100
75.41
EACH
S2K Commerce - Products Dropdown
Actions
- ${title}
Loading...
